高电压并联电容器主要应用于50Hz 或60Hz交流电力系统以改善功率因数，产品性能符合GB3983.2-89《高电压并联电容器》及国际标准IEC60871-1。
The products are applied to 50Hz or 60Hz AC electrical power system for powerirmpr-oving and will be according to the national standard GB 3983.2-89(high voltage shumt capacitor)and imter national IEC60871-1.
-

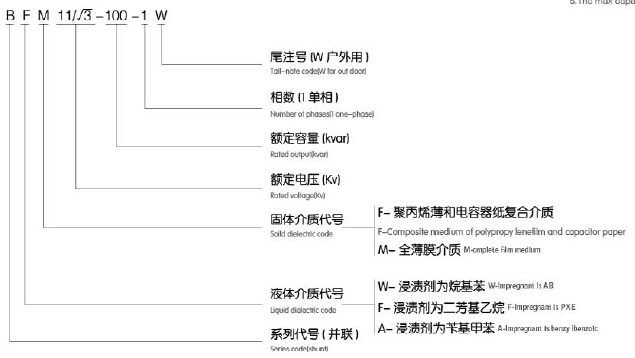

型号说明 model meanings
使用条件 service conditions
1. 海拔高度不超过1000m。环境空气温度-40℃ ~+40℃；
2. 安装场所无剧烈的机械振动，无有害气体及蒸汽、无导电性及爆炸性尘埃；
3. 连续运行电压1.0Un，长期过电压最高值不超过1.1Un；
4. 稳态过电流( 包括谐波电流) 不超过1.43In；
5. 最大允许容量不超过1.35Qn。
1.Altetude lower than 1000m,ambiedt temperature-40℃ ~-40℃ ;
2.No strong mechanical vibmfom at installing place.No corrosive gas,inductive dust,and inrlammable and explosive media in the ambient environment;
3.Continuous operating voltageis 1.0Un.The highest overvaltaeg value for long time peration will not exceed1.1Un;
4.Stemdy-state over current(include hamaonic current) will not exceed 1.43In;
5.The max capacity will not more than 1.35Qn.
